公稱管對焊端接符合ASME B 16.25

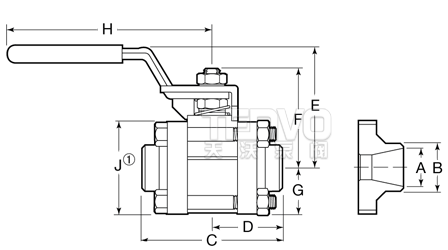

公稱管對焊球閥–外形尺寸
| 口徑 | 孔徑 in,(mm) |
Cv | 尺寸,in,(mm) | ||||||||
| A | B | C | D | E | F | G | H | J① | |||
| 管壁厚規(guī)格40 | |||||||||||
| 1/4 | 0.188 (4.8) |
1.2 | 0.364 (9.2) |
0.540 (13.7) |
2.08 (52.8) |
1.04 (26.4) |
1.66 (42.2) |
1.26 (32.0) |
0.68 (17.3) |
2.37 (60.2) |
1.35 (34.3) |
| 1/2 | 0.516 (13.1) |
15 | 0.622 (15.8) |
0.840 (21.3) |
2.69 (68.3) |
1.34 (34.0) |
2.35 (59.7) |
1.79 (45.5 |
0.89 (22.6) |
4.50 (114) |
1.78 (45.2) |
| 3/4 | 0.824 (20.9) |
36 | 0.824 (20.9) |
1.050 (26.7) |
3.59 (91.2) |
1.80 (45.7) |
2.94 (74.7) |
2.52 (64.0) |
1.25 (31.8) |
6.00 (152) |
2.51 (63.8) |
| 1 | 0.875 (22.2) |
90 | 1.049 (26.6) |
1.315 (33.4) |
3.46 (87.9) |
1.73 (43.9) |
|||||
| 1-1/2 | 1.250 (31.8) |
100 | 1.610 (40.9) |
1.90 (48.3) |
4.47 (114) |
2.23 (56.6) |
4.03 (102) |
3.14 (79.8) |
1.53 (38.9) |
9.14 (232) |
3.06 (77.7) |
| 2 | 1.500 (38.1) |
130 | 2.067 (52.5) |
2.375 (60.3) |
4.86 (123) |
2.43 (61.7) |
4.16 (106) |
3.36 (85.3) |
1.74 (44.2) |
3.47 (88.1) |
|
公稱管對焊球閥-可配執(zhí)行機構
